Products Description
● 5.0Tons/11000LBS capacity,5156mm runway length;
● Outside slider, compact and elegant design;
● High quality porwer coating finish;
● Heavy duty, stainless lifting cables;

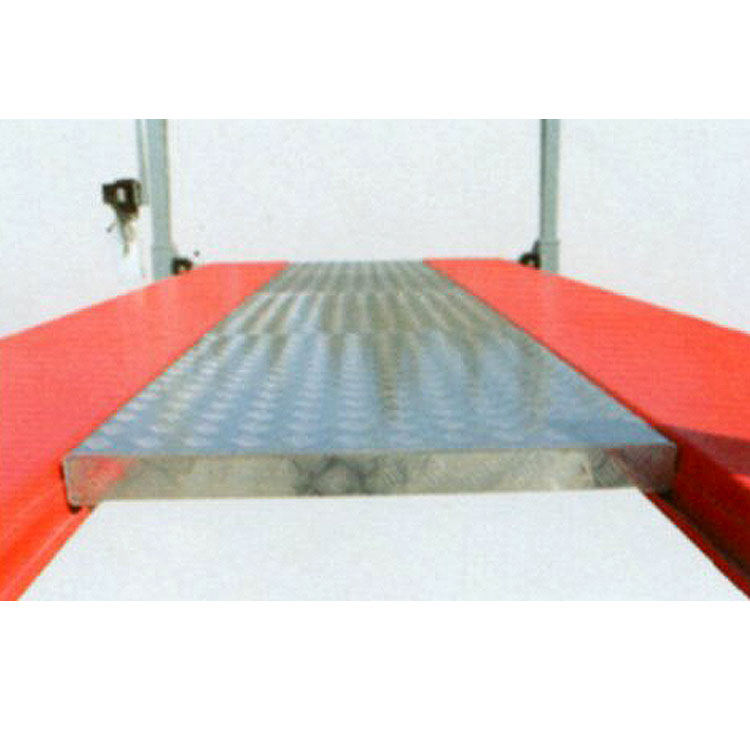

● ALU approaching ramps;
● Single point manual lock release, quite convenient to operate;
● Optional anti-surge valve in case of hydraulic hose burst;
● Cable anti-break device to double ensure the safety;
● Slave runway adjustable to cater for various wheel base vehicles;
● Multi-position locks allow runways to be leveled at any lock position;
● Single hydraulic cylinder hidden away under the runway for Min exposure and
Max reliable perfomance;
● ETL and CE oertified power unit.

Tags:

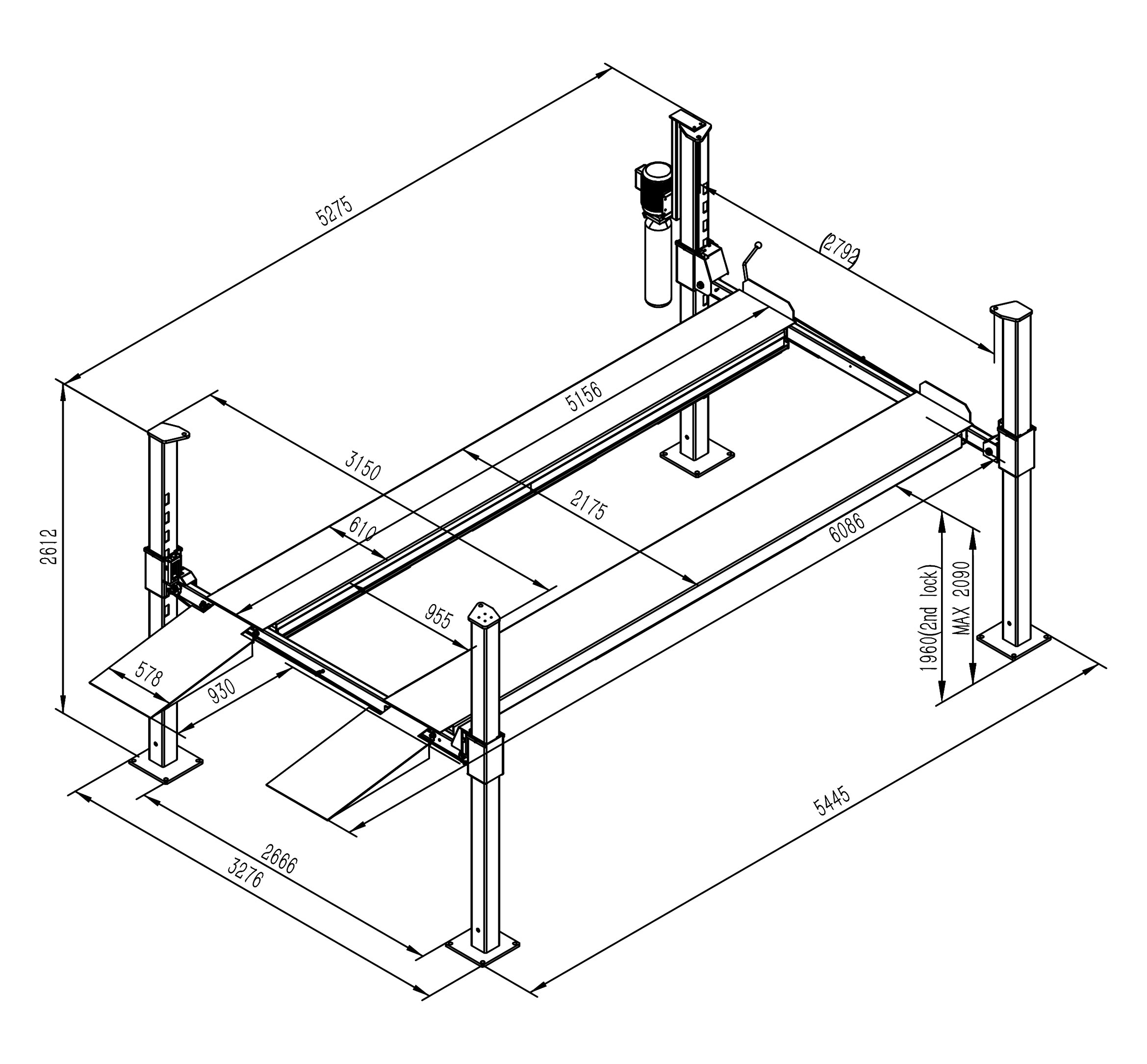

Technical parameter
Model:SS110000
Lifting Capacity: 5000KGS
Lifting Height: 2090mm
Secondary Lifting Height:350mm
Secondary Lifting Weight:2.0T
Power of Motor:3.0KW
Oil Pressure:18Mpa
Power Supply:10-240V/380-415V 1/3PH, 50Hz/60Hz
Rise Time:50s
Lowering Time:40s
